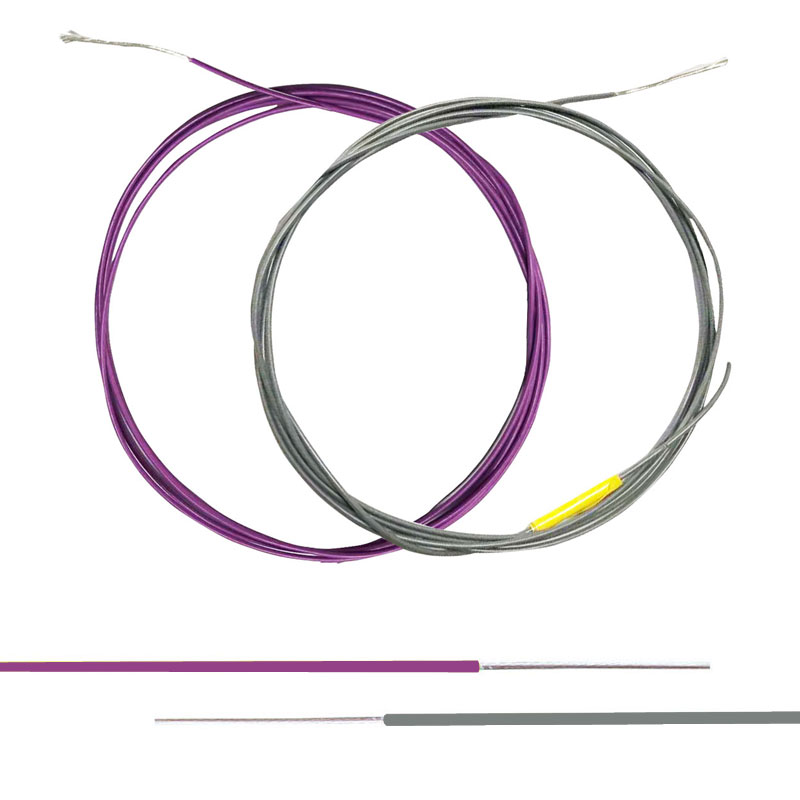

FEP High Temperature Wires

Name: FEP High Temperature Wires
Brand: SANCO
Price: 1 USD

Brand Name : SANCO

Model Number : AF-200, AFK-250, AFR-250

Certification : ISO9001

Place of Origin : China

MOQ : 100m

Price : Negotiation

Supply Ability : 250000M/Per Month

Delivery Time : 3~8days

Packaging Details : Cable tray or Packing in roll with carton box

Insulation : FEP, ETFE, PFA or PTFE Insulated

Working temperature : -65°C ~ +200°C, -60℃~250℃

Features : Heat resistance

Available Color : Red, Yellow, Violet, Green, Transparent, Grey, Blue, White, Black

Service : OEM ODM Accept

Wire gauge : 10AWG, 12AWG, 14AWG, 16AWG, 18AWG, 20AWG...

Conductor Material : Silver or Tinned Plated Copper or Bare Copper

Rated voltage : AC 220V or 600V

Customized product : Yes

Contact Now

FEP ETFE PFA PTFE Insulation High Voltage high temperature Coated Heating Wire

high temperature is called fluoroplastics,There are PTFE, FEP, PFA, ETFE total 4 types.

high temperature PTFE: PTFE (polytetrafluoroethylene) wire can be continuously used at 260 degree, with a maximum service temperature of 290-300 degree, very low coefficient of friction, good wear resistance and excellent chemical stability. ,

high temperature FEP: FEP (fluorinated ethylene propylene copolymer) wire with excellent chemical stability, excellent non-stick characteristics, the maximum operating temperature is 200℃.

high temperature PFA: PFA (perfluoroalkyl compound) wire has higher continuous service temperature of 250℃, stronger toughness, especially suitable for use in high temperature anti-stick and chemical resistance applications

high temperature ETFE: ETFE wire is a copolymer of ethylene and tetrafluoroethylene with excellent chemical resistance and continuous operation at 150℃

Applications of High temperature wires

1. Appliance Wiring
2. Pressure and flow monitoring
3. Power generation
4. Furnaces wiring
5. Medical wiring
6. Drying equipment
7. Aircraft wiring
8. Military Applications

Wire gauge (AWG)	Section area (mm2)	Conductor construction piece/diameter (mm)	Insulation thickness (mm)	Outer diameter (mm)	Max. Conductor resistance at 20℃ (Ω/Km)	Packing length (m)
10awg	5mm2	37x0.43mm	0.33mm	3.67	3.546	305
12awg	3mm2	19x0.49mm	0.33mm	3.11	5.64	305
14awg	2mm2	19x0.37mm	0.33mm	2.51	8.96	305
16awg	1.2mm2	19x0.3mm	0.33mm	2.16	14.6	305
17awg		19x0.26mm	0.33mm	1.96	18.3	305
18awg	1mm2	19x0.23mm	0.33mm	1.81	23.2	305
20awg	0.5mm2	19x0.2mm	0.33mm	1.61	36.7	305
20awg	0.5mm2	1x0.8mm	0.33mm	1.46	35.2	305
22awg	0.3mm2	19x0.16mm	0.33mm	1.46	59.4	610
22awg	0.3mm2	1x0.65mm	0.33mm	1.31	56.4	610
24awg	0.2mm2	7x0.2mm	0.33mm	1.26	94.2	610
24awg	0.2mm2	1x0.5mm	0.33mm	1.16	89.3	610
26awg	0.12mm2	7x0.16mm	0.33mm	1.14	150	610
26awg	0.12mm2	1x0.4mm	0.33mm	1.06	143	610
28awg	0.08mm2	7x0.12mm	0.33mm	1.02	239	610
28awg	0.08mm2	1x0.32mm	0.33mm	0.98	227	610
30awg	0.06mm2	7x0.1mm	0.33mm	0.96	381	610
30awg	0.06mm2	1x0.254mm	0.33mm	0.914	361	610
32awg	0.035mm2	7x0.08mm	0.41mm	1.06	664.8	610
32awg	0.035mm2	1x0.2mm	0.41mm	1.02	588.3	610
